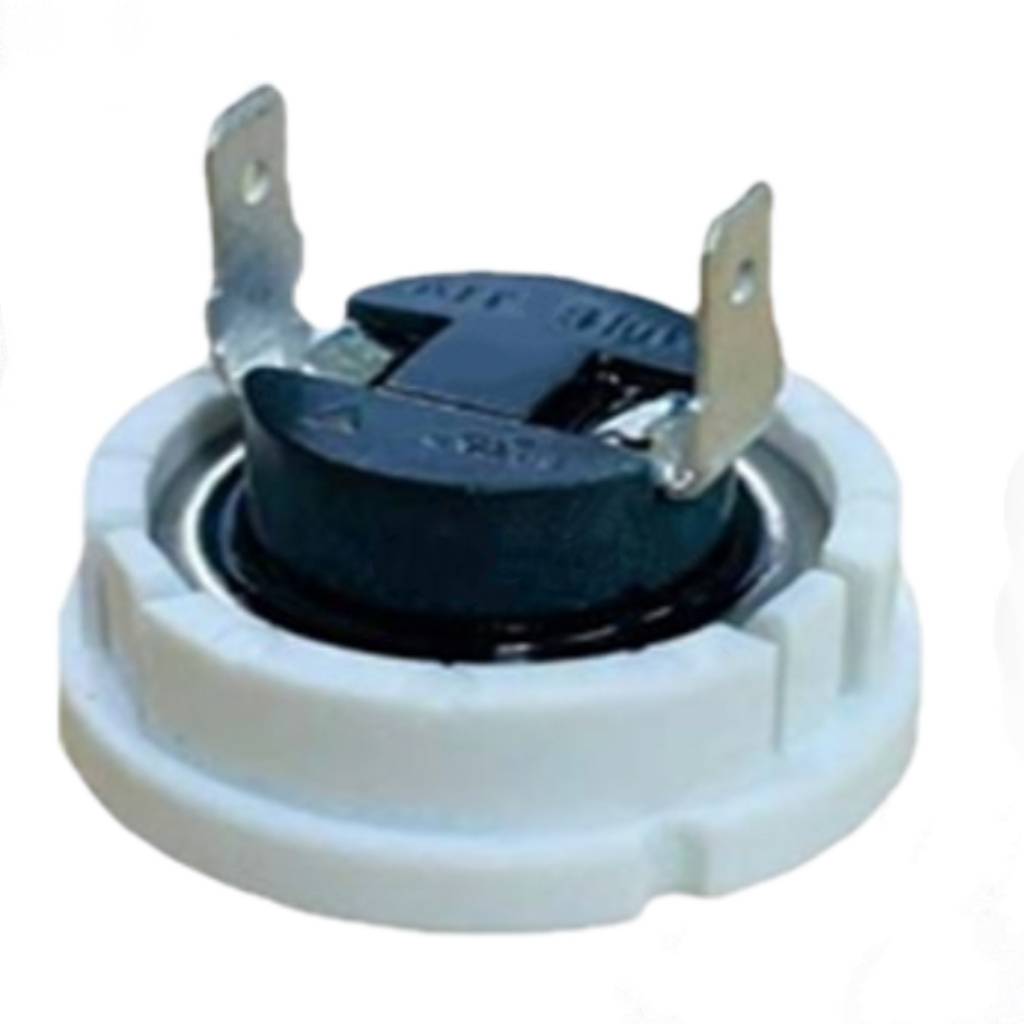

S101 :: DEFROST THERMOSTAT

  • S101 :: DEFROST THERMOSTAT
S101 (DEFROST)

Operating Temp: -5 to 150 ˚C


ดาวน์โหลด



รหัสสินค้า : S101 (DEFROST)


ข้อมูลจำเพาะ

Electrical Rating (Resistive Load) 125 VAC/ 15A, 250 VAC/ 10A
Operating Temperature -5 to 150˚C (upon customer requirement)
Temperature Tolerance Operating Temperature ±4˚C / Return Temperature ±7˚C (standard)
Circuit Resistance (Initial Value) 50 mΩ or less
Insulation Resistance 100 MΩ or more (with 500 VDC Megger)
Dielectric Strength 1500 VAC/minute or 1800 VAC/second
Heat Durability 150˚C
Switching Durability 100,000 cycles or more (at rated load)
Tracking Resistance Phenolic case shall be followed PTI value more than 175V
Differential (between operation and return temperature) 8˚C or more (automatic reset) / Return temperature less than -35˚C (Single Operation)
